Sub-Zero Water Filter Head Assembly Replacement Guide

Replacing the water filter in your Sub-Zero fridge is straightforward, but tackling the head assembly (also called the manifold) takes more effort – it's the part that holds the filter and connects the water lines, and issues like leaks or clogs often point there.

Sub-Zero refrigerators, known for their premium built-in designs, use a water filter head assembly to distribute filtered water to the dispenser and ice maker. The assembly, part number 7021761 for many models, includes the manifold that houses the filter cartridge (like 4204490). Manifold problems show up as persistent leaks, no flow even after filter swaps, or damaged threads from over-tightening.

This guide focuses on advanced DIY for manifold issues in Sub-Zero Classic (BI), PRO, and Designer series. It's not for beginners, if you're unsure, call a pro to avoid water damage. Tools needed: screwdriver, pliers, towel, new assembly, and possibly Teflon tape. Shut off the water supply and unplug the fridge first.

Preparing for the Replacement

Gather your tools and parts – the 7021761 manifold kit includes the head, fittings, and instructions for most models. Check your fridge's serial number on Sub-Zero's site to confirm compatibility, as BI series differ from PRO.

Move the fridge out from the wall for access – it's heavy, so get help. Empty the fresh food section and remove shelves near the filter area if inside. Have buckets ready for draining lines. This job takes 30-60 minutes, longer if rust or old fittings fight back.

Step-by-Step Manifold Replacement

Manifold locations vary: base or rear for built-ins, interior for some. Follow these for common setups.

Accessing the Assembly

1. Remove the base grille – pull forward and tilt up, or unscrew if fastened.
2. Locate the manifold – often behind the grille or in the machine compartment at the back.
3. Shut off water at the valve and disconnect the supply line – use pliers if stuck, catch drips.

Removing the Old Manifold

1. Disconnect inlet and outlet lines – note which is which (inlet from wall, outlet to fridge).
2. Unscrew mounting brackets holding the manifold – Phillips head usually.
3. Pull the assembly out carefully – old ones might stick from mineral buildup.
4. Inspect for cracks or corrosion – common in hard water areas.

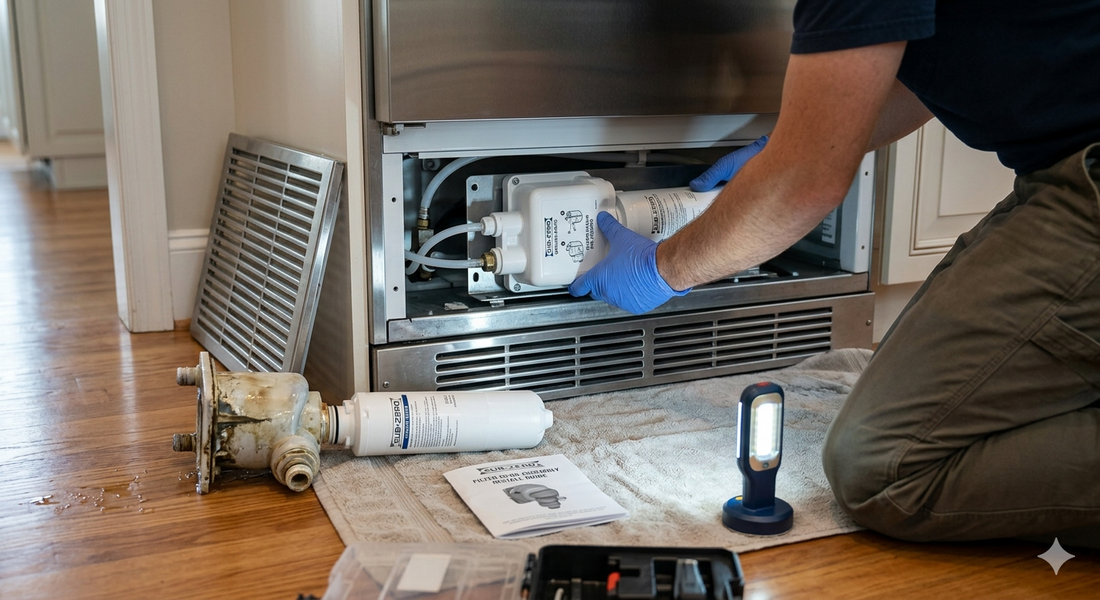

Installing the New Manifold

1. Attach the new assembly to brackets – screw securely.
2. Reconnect lines – use Teflon tape on threads for seal.
3. Insert a new filter cartridge if swapping.
4. Turn water back on slowly – check for leaks at connections.
5. Flush 2-3 gallons through dispenser to clear air and debris.

Test flow and reset indicators. If leaks persist, tighten fittings or call a pro.

Advanced DIY for Manifold Issues

Manifold problems like leaks often stem from worn O-rings or cracked plastic in hard water. Replace O-rings (cheap parts) before full assembly swap.

For frozen lines in cold garages, thaw gently first. Mineral buildup? Soak old manifold in vinegar overnight before removal.

A nuance: older Sub-Zero models may need tubing cuts – use sharp cutters and ferrules for reconnections. If water pressure drops, the manifold valve might fail – full replacement needed.

For system basics, our Sub-Zero built-in water filtration system: How it works and filter types explains the setup.

Competitors and Alternatives

While Sub-Zero leads luxury, Thermador manifolds in Freedom series use similar push-fits, easier in some installs. Viking 7 Series has rear access, but parts cost more. Bertazzoni or Fisher & Paykel offer built-ins with simpler manifolds for DIY.

Generics exist but risk fits – stick genuine for Sub-Zero.

For when to swap or fix, see our When to replace vs. repair refrigerator filter housing.

Tips for Success

• Wear gloves – water lines get grimy.
• Label lines before disconnect – inlet/outlet mix-ups cause issues.
• Test pressure post-install – weak flow means air locks.
• Hard water? Add a pre-filter to extend life.

Wrapping Up

Sub-Zero water filter head assembly replacement handles manifold issues with careful steps – access, remove, install, and test for leak-free flow. Competitors like Thermador vary slightly. Our shop has parts – smoother fixes await. For general care, check Installation, Maintenance, and Troubleshooting for Refrigerator Filters.
