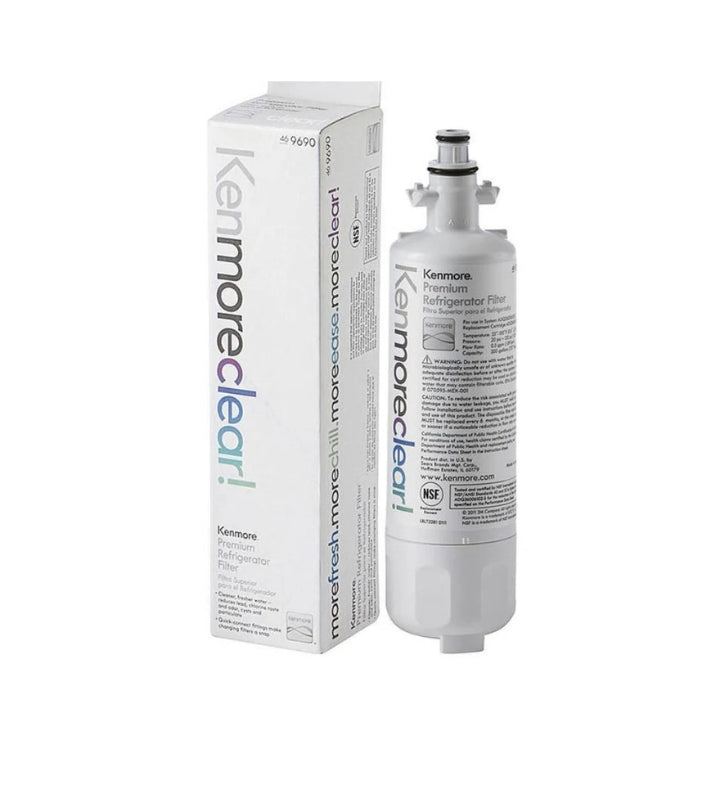

Kenmore 9690, 46-9690 Refrigerator Water Filter

The Kenmore 9690 stands out from most Kenmore filters for two reasons. First, it carries a 300 gallon capacity, higher than the standard 200 gallon rating most Kenmore filters carry. Second, it is cross-compatible with LG refrigerators using the LT700P filter, making it one of the more versatile options in the Kenmore lineup. NSF 42, 53, and 401 certified to reduce chlorine, lead, mercury, benzene, and other contaminants, with three independent certifications, NSF, WQA, and IAPMO, backing the performance claims. If the filter indicator light is on or it has been more than six months since the last replacement, this is the filter the fridge needs.

Why Choose the Kenmore 9690 Water Filter

The Kenmore 9690 refrigerator water filter has been tested and certified by NSF, WQA, and IAPMO, three independent third-party certifications covering contaminant reduction, material safety, and plumbing compliance. Here is what the 46-9690 specifically addresses:

• Mercury and benzene, contaminants not covered by all Kenmore filter models
• Lead and heavy metals
• Chlorine taste and odor
• Asbestos fibers
• Sediment, rust, and turbidity
• Cysts, Cryptosporidium and Giardia
• BPA-free, food grade construction throughout

Kenmore 9690 Filter Specifications

• Product Name: Kenmore 9690, 46-9690 Refrigerator Water Filter
• Certification: NSF 42, 53, and 401, WQA and IAPMO certified
• Filter Capacity: 300 gallons
• Filter Life: Up to 6 months
• Flow Rate: 0.5 GPM
• Operating Temperature: 33 to 100 degrees Fahrenheit
• Working Pressure: 20 to 120 PSI
• Dimensions: 7.125 inches L x 1.875 inches W x 1.875 inches H
• Installation Type: Push-and-click, twist-in, tool-free
• Compatible Fridge Types: Kenmore Elite French door, side-by-side, bottom-freezer and select LG models
• Brand: Kenmore

Easy Installation for the Kenmore 46-9690 Water Filter

No tools needed. The push-and-click twist-in design keeps the process straightforward. Here is how the swap works:

1. Locate the filter housing in the upper right corner inside the refrigerator
2. Twist the old filter counterclockwise to remove it
3. Insert the new Kenmore 9690 filter and twist clockwise until it locks firmly into place
4. Flush 2 to 3 gallons of water through the dispenser before use to clear air pockets and carbon fines from the new filter
5. Reset the filter indicator light per the refrigerator user guide

When to Replace the Kenmore 46-9690 Filter

Replace the Kenmore 9690 refrigerator water filter when any of the following occur:

• Every 6 months or 300 gallons, whichever comes first
• Water picks up a flat taste or faint odor
• Dispenser flow slows noticeably
• The filter indicator light activates on the refrigerator panel

Key Benefits

• WQA and IAPMO certified, three independent certifications backing performance claims
• Reduces mercury and benzene, coverage beyond most standard Kenmore filters
• 300 gallon capacity, higher than the standard 200 gallon rating
• Cross-compatible with LG LT700P on select models
• BPA-free food grade construction throughout
• Push-and-click twist-in installation with no tools required

FAQs

What makes the Kenmore 9690 different from other Kenmore filters?

Two things. The 9690 carries a 300 gallon capacity rather than the standard 200 gallon rating, and it is cross-compatible with LG refrigerators using the LT700P filter. It also covers mercury and benzene reduction, which not all Kenmore filter models address. Three independent certifications, NSF, WQA, and IAPMO, verify the performance claims.

Is the Kenmore 9690 compatible with LG refrigerators?

Yes. The Kenmore 46-9690 is cross-compatible with LG LT700P filters and fits select LG refrigerator models. Always verify the refrigerator model number before ordering to confirm compatibility.

What part numbers does the Kenmore 9690 replace?

The 9690 directly replaces LT700P, ADQ36006101, ADQ36006102, ADQ36006106, ADQ36006113, AGF80300701, AGF80300702, and AP5594314 among others. Check the label on the current filter to confirm the correct replacement before ordering.

How often should the Kenmore 9690 filter be replaced?

Every 6 months or 300 gallons, whichever comes first. If water taste changes or dispenser flow slows before the six month mark, replace sooner. The 300 gallon capacity means heavier-use households may still reach the gallon limit before the six month mark.

Is this filter sold as a single pack?

Yes. This listing covers the Kenmore 9690, 46-9690 Refrigerator Water Filter as a single pack. Check the product listing for multi-pack options if ordering replacements for an extended period.
